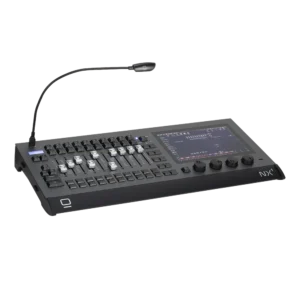

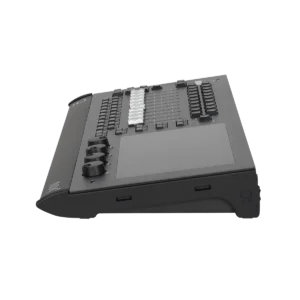

Obsidian Control Systems / NX1-16

基本情報

Electrical
Input:100-240V nominal, 50/60 Hz
(AC mains power to 12VDC external PSU)
Maximum current: 3A
Output(12VDC): 11A, 132W max
Size
L:300mm W:540mm H:121mm
9kg
Hardware
Touchscreen:15.6″TFT16:9(1920×1080px)
Storage Drive:250GB NVMe M.2
CPU:Intel i5 Hexa-Core
RAM:16GB DDR4
Connections
DMX / RDM Universe In/Out: 5pin locking XLR ×4
External Display: DisplayPort (up to 4k)×2
Network:RJ45 for Art-Net, sACN, ONYX X-Net ×2
Storage: USB 3.0×4, USB 2.0×1
Audio Out, Mic In: 3.5mm Jack×2
MIDI in/out/thru (MIDI Show Control, MIDI notes,
MIDI Timecode): 5pin DIN
SMPTE Timecode In/Out: 3pin XLR
12 VDC power supply input: 4pin XLR
Desk Lamp: XLR 12V
USB In: USB 2.0 B
