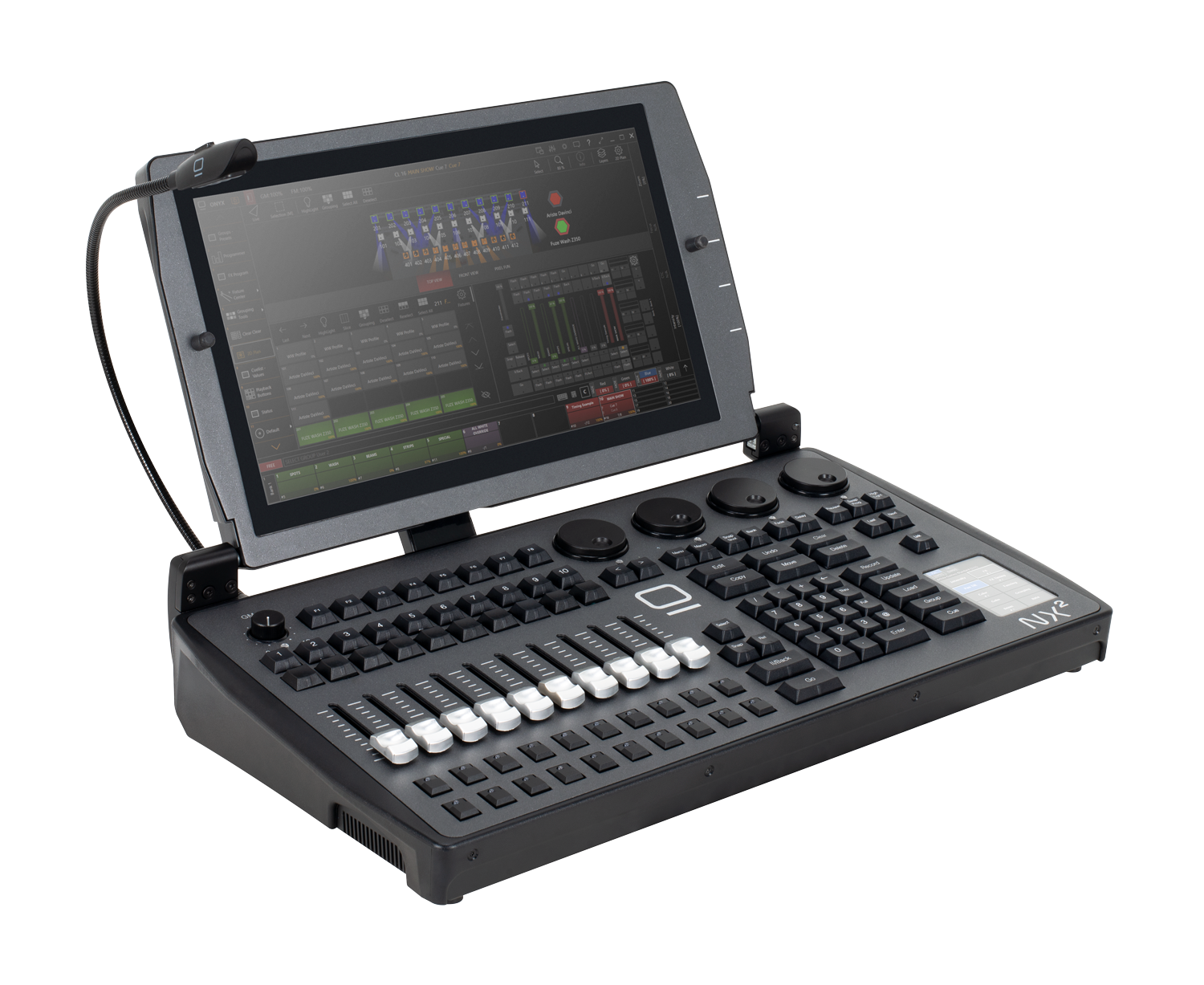

Obsidian Control Systems / NX2

Obsidian Control Systems / NX2

基本情報

Electrical
    Input:100-240V nominal, 50/60 Hz
    (AC mains power to 12VDC external PSU)
    Maximum current: 3A
    Output(12VDC): 11A, 132W max
Size
    L:300mm  W:540mm  H:121mm
    9kg
Hardware
    Touchscreen:15.6″TFT16:9(1920×1080px)
    Storage Drive:250GB NVMe M.2
    CPU:Intel i5 Hexa-Core
    RAM:16GB DDR4

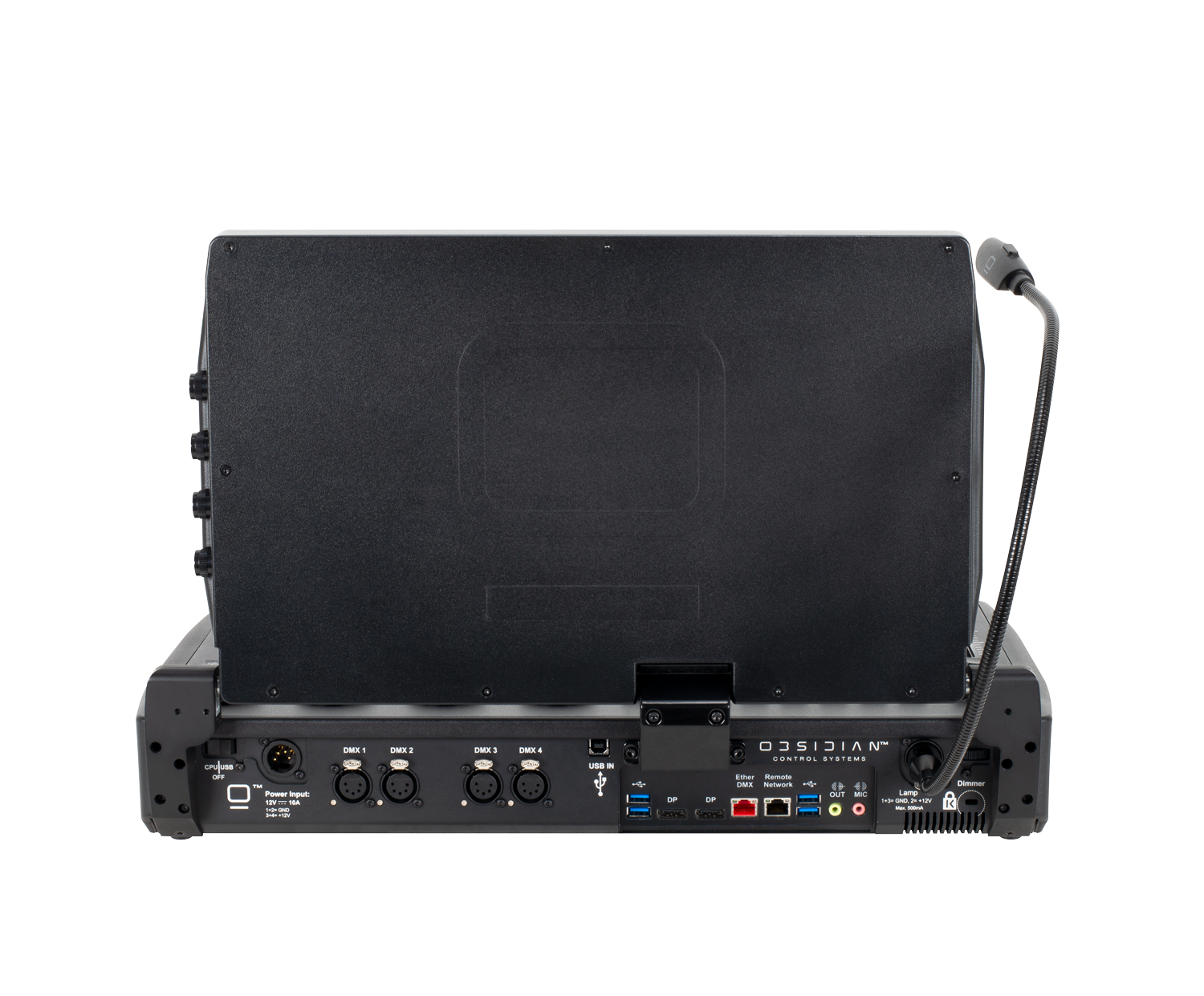

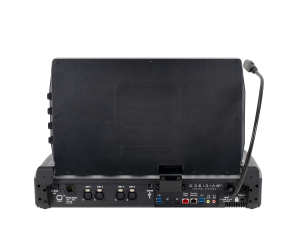

Connections
    DMX / RDM Universe In/Out: 5pin locking XLR ×4
    External Display: DisplayPort (up to 4k)×2
    Network:RJ45 for Art-Net, sACN, ONYX X-Net ×2
    Storage: USB 3.0×4, USB 2.0×1
    Audio Out, Mic In: 3.5mm Jack×2

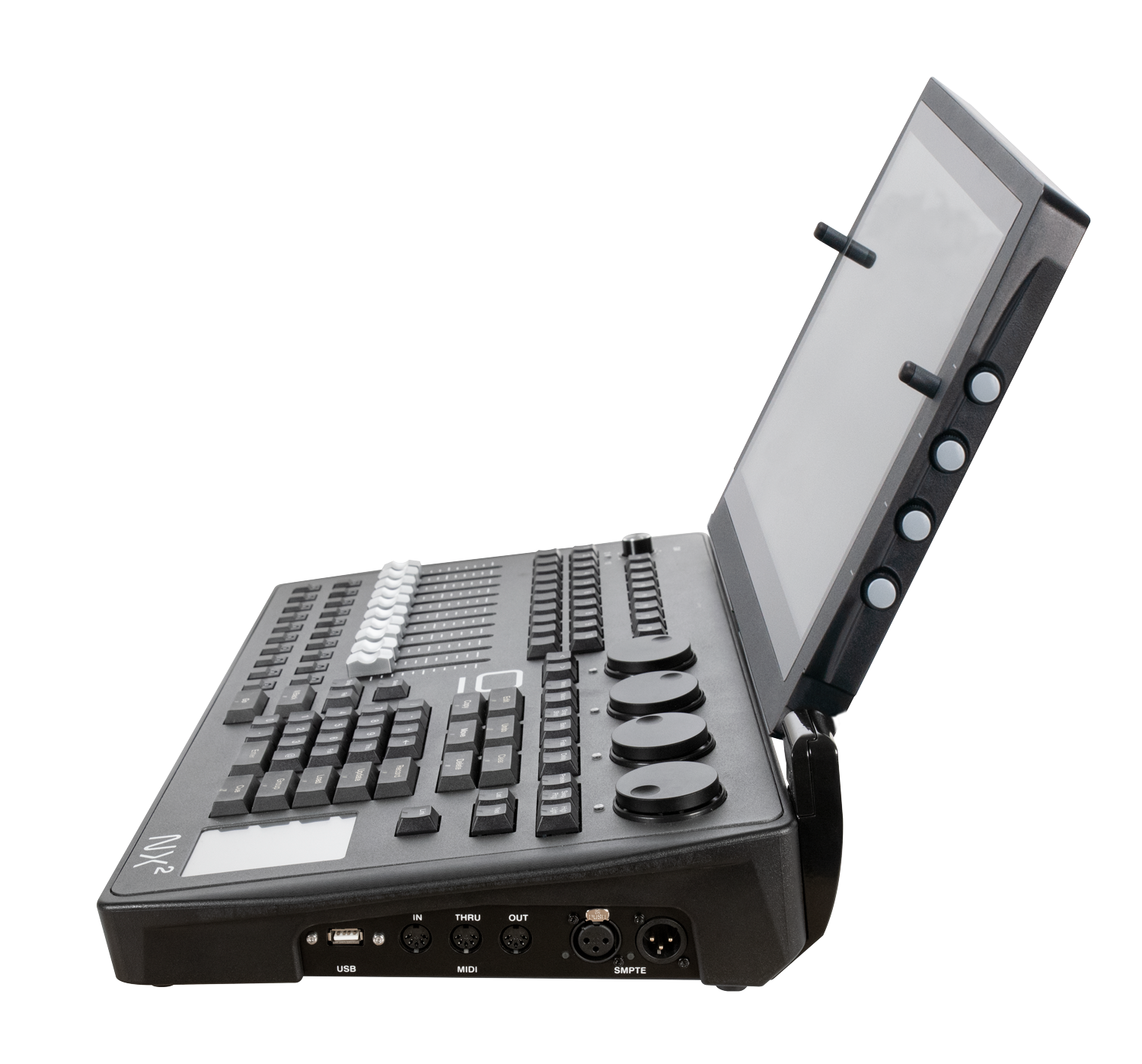

    MIDI in/out/thru (MIDI Show Control, MIDI notes,
                                   MIDI Timecode): 5pin DIN
    SMPTE Timecode In/Out: 3pin XLR
    12 VDC power supply input: 4pin XLR
    Desk Lamp: XLR 12V
    USB In: USB 2.0 B
