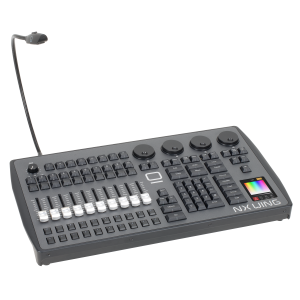

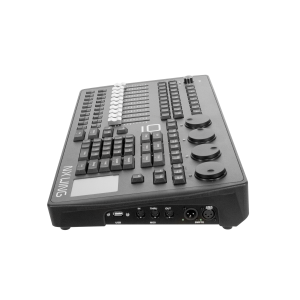

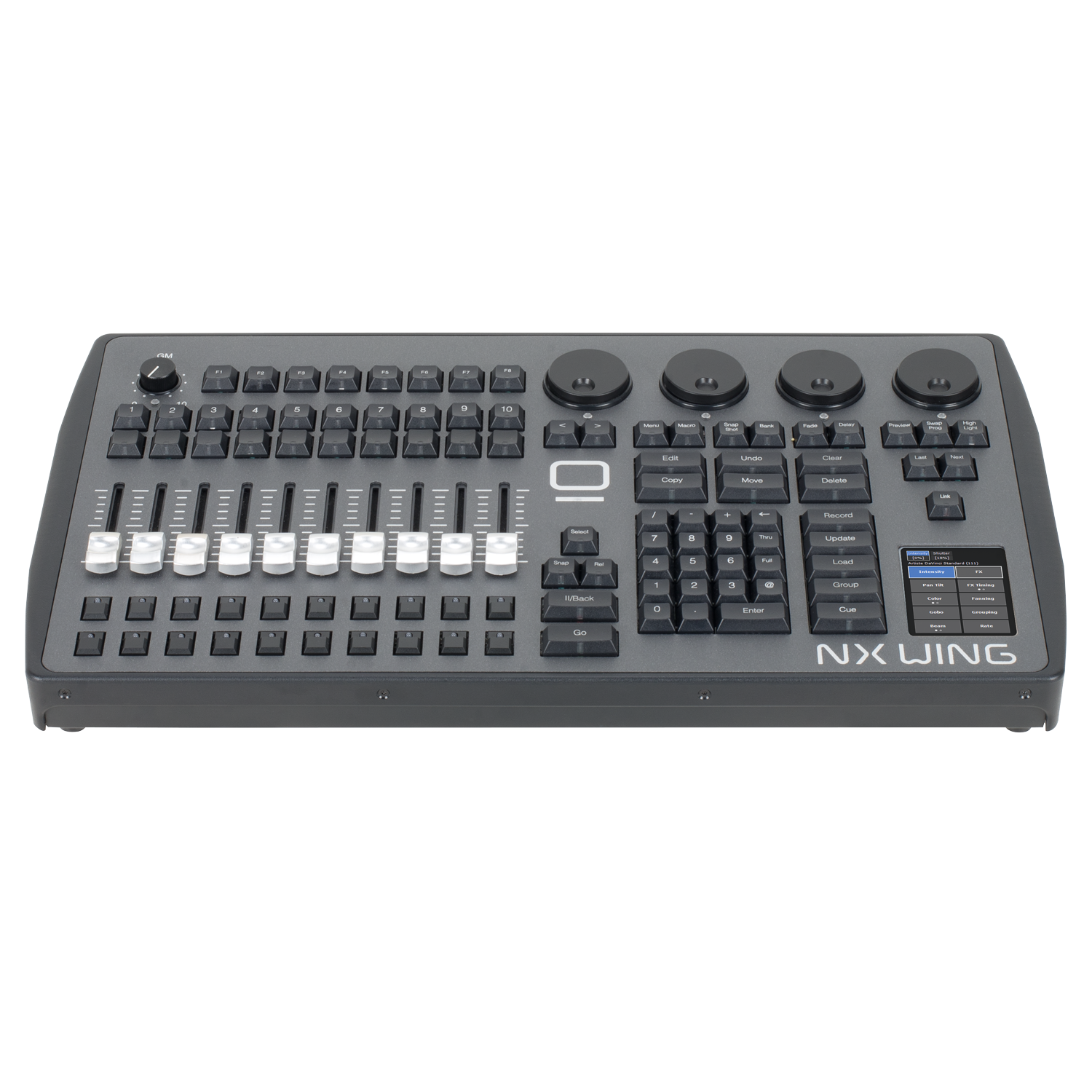

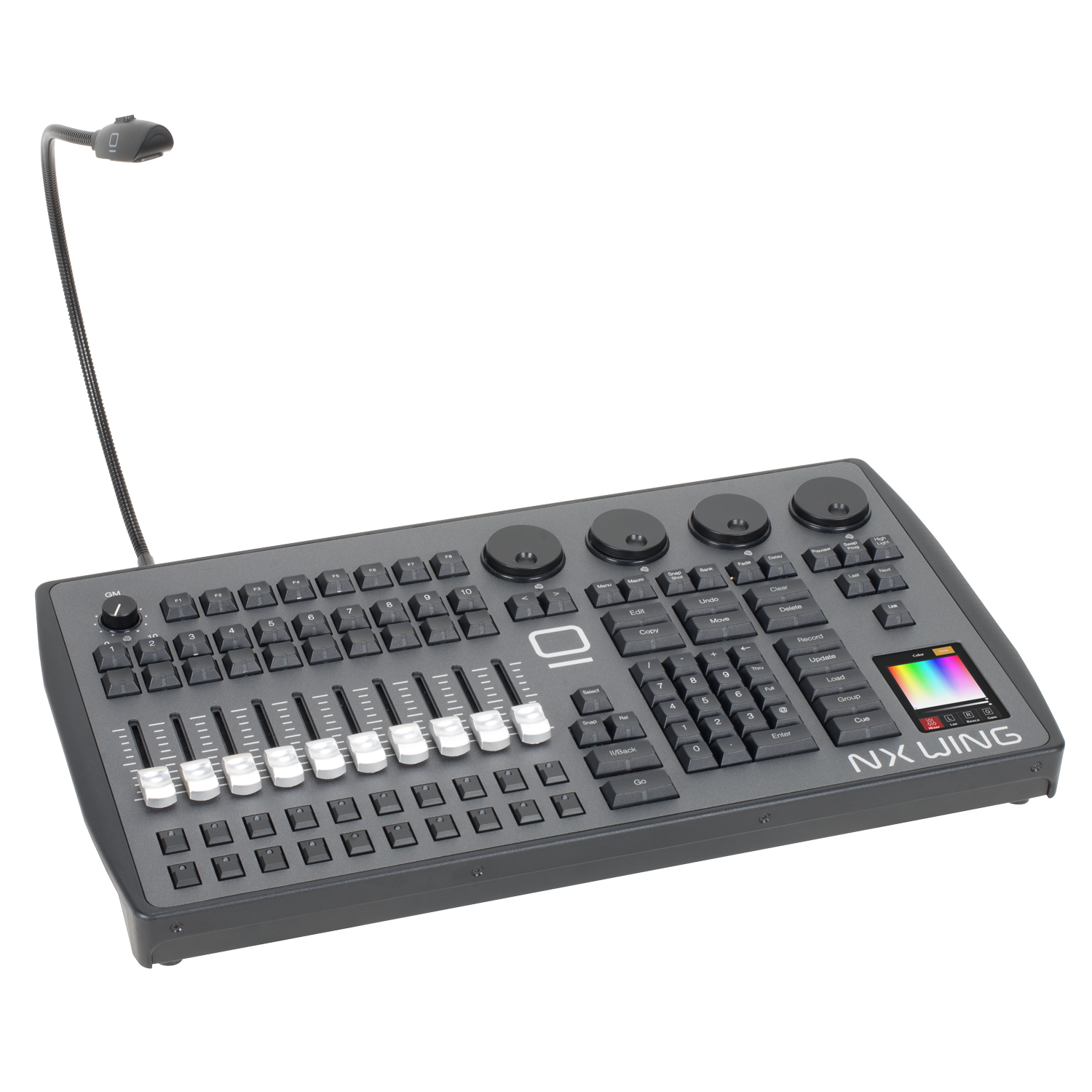

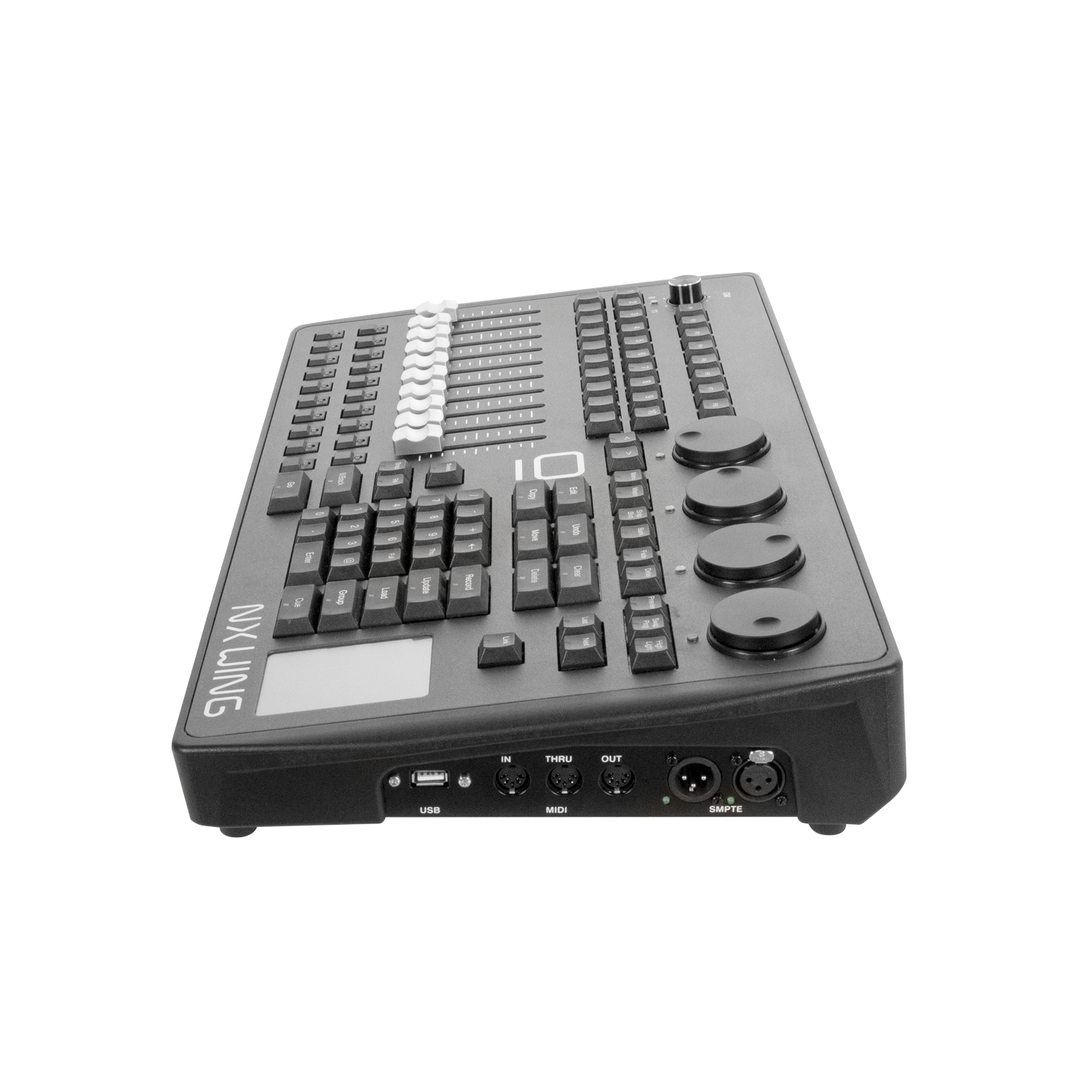

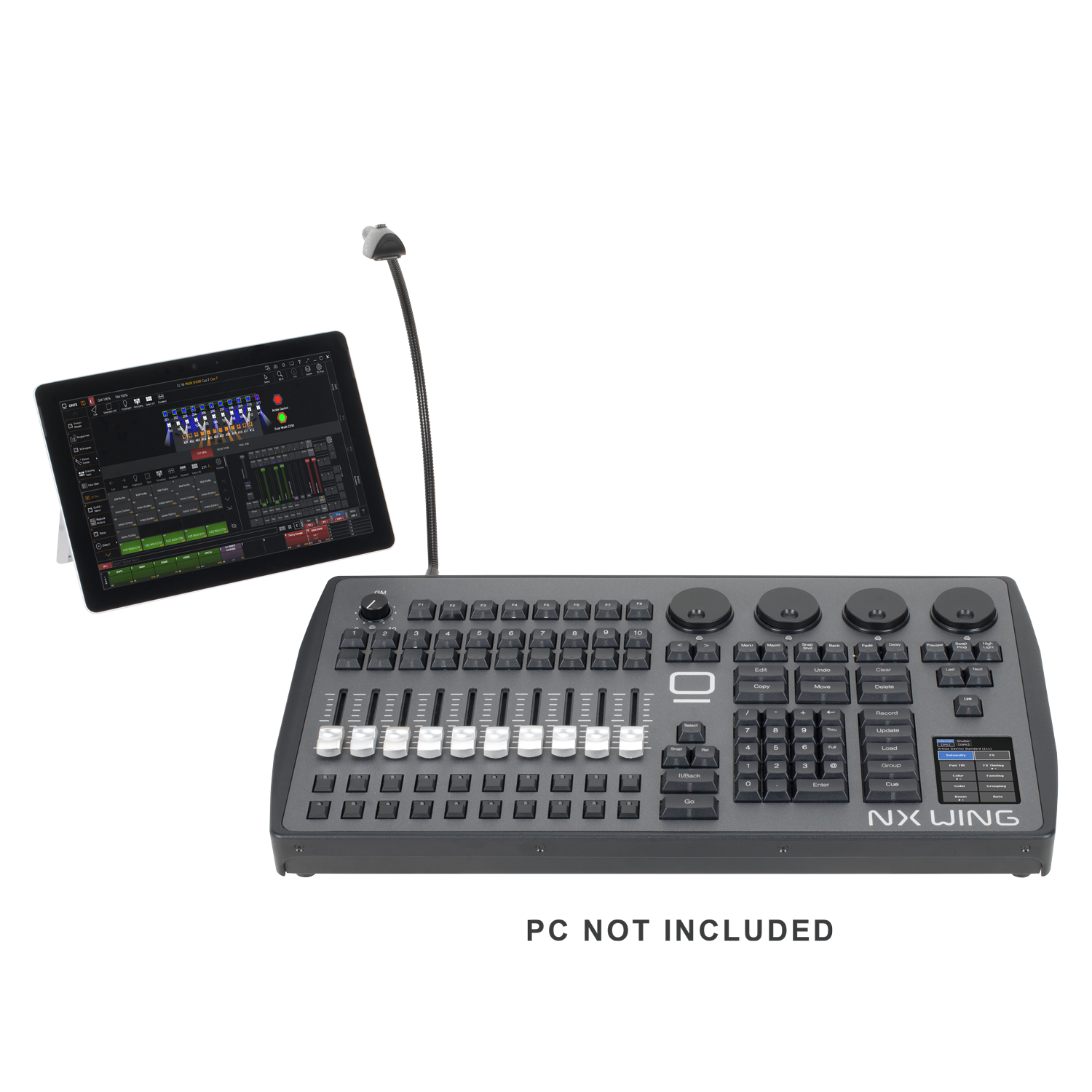

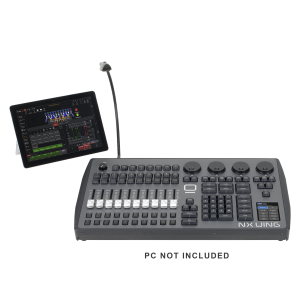

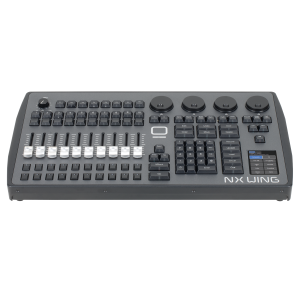

2020年8月11日 / 最終更新日時 : 2020年8月16日 ishii Obsidian Control Systems Obsidian Control Systems / NX Wing Obsidian Control Systems / NX Wing 基本情報 Electrical Input:100-240V nominal, 50/60 Hz (AC mains power to 12VDC external PSU) Maximum current: 3A Output(12VDC): 11A, 132W maxSize L:300mm W:540mm H:99mm 4.6kgHardware Touchscreen:15.6″TFT16:9(1920×1080px) Storage Drive:250GB NVMe M.2 CPU:Intel i5 Hexa-Core RAM:16GB DDR4Connections DMX / RDM Universe In/Out: 5pin locking XLR ×4 MIDI in/out/thru (MIDI Show Control, MIDI notes, MIDI Timecode): 5pin DIN SMPTE Timecode In/Out: 3pin XLR 12 VDC power supply input: 4pin XLR Desk Lamp: XLR 12V USB In: USB 2.0 B メーカサイトリンク Obsidian Control Systems / NX Wing機材ページ Obsidian Control Systems / OnyxSoftware DLページ 関連機材 NX2 NX Widget
